Low Energy Consumption Automatic Paper Egg Tray Packaging Machine and Pulp Molding Machine with Dryer Metallic Dryer Simple Design
Product Information
There are 2 models for customer to choose, semi automatic one without dryer, fully automatic one with dryer.
Main sections of the paper egg tray machine:
1. pulping system: including the hydrapulper, pump, water tank, pulp tank, mixer, etc..to make the wastepaper into paper pulp.

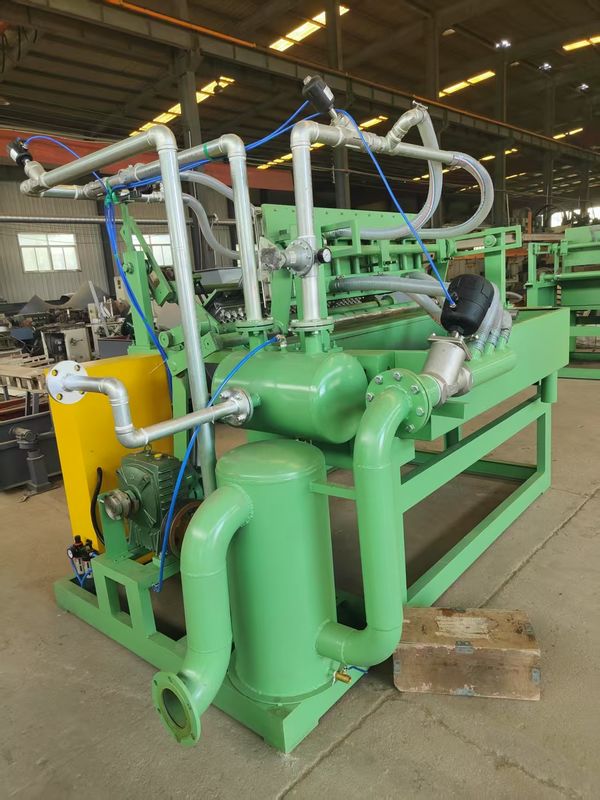

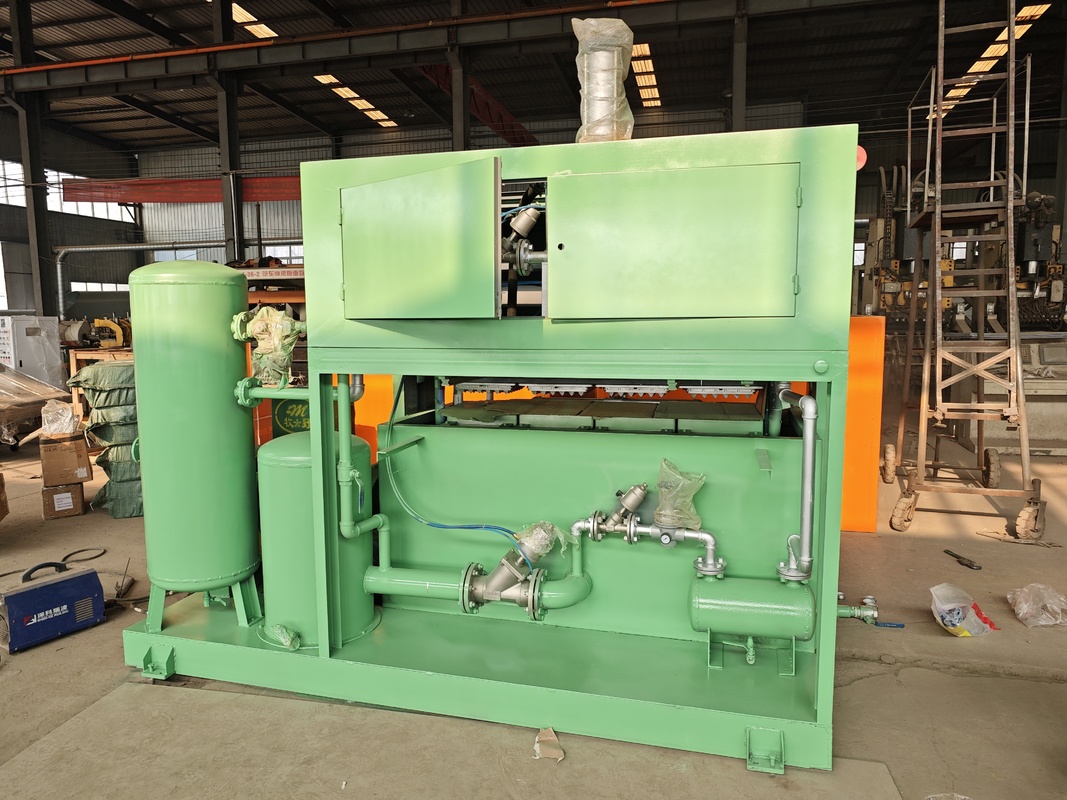

2. forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.

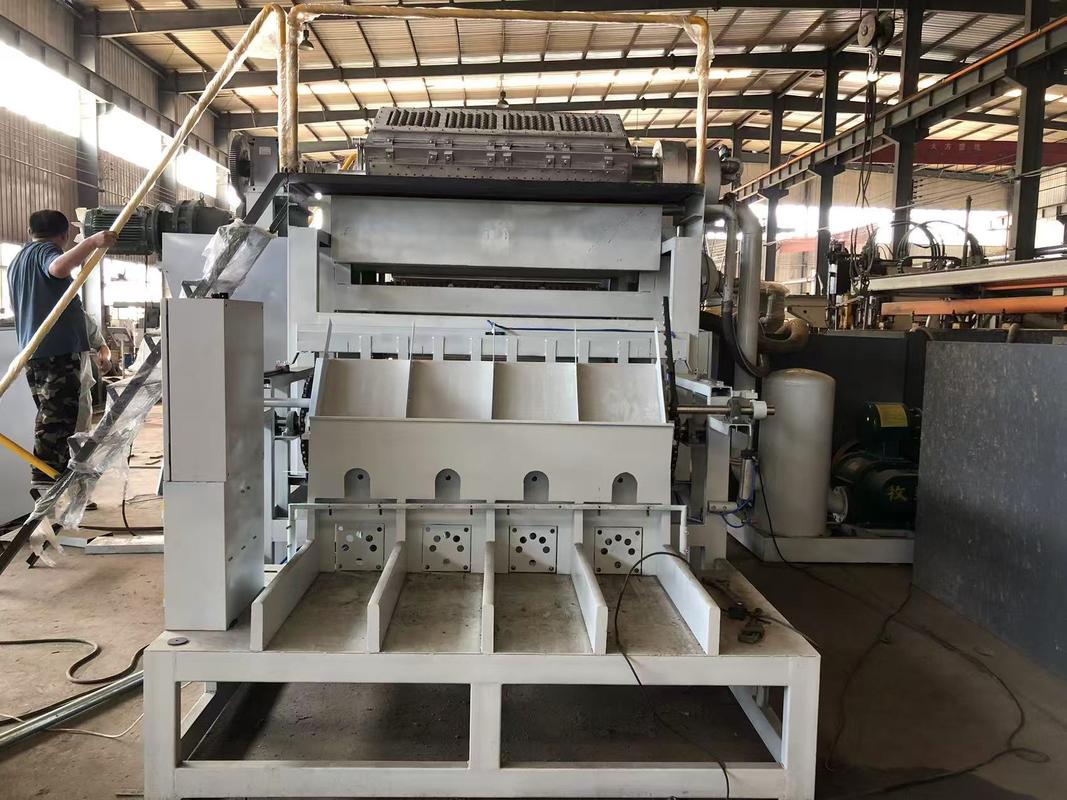

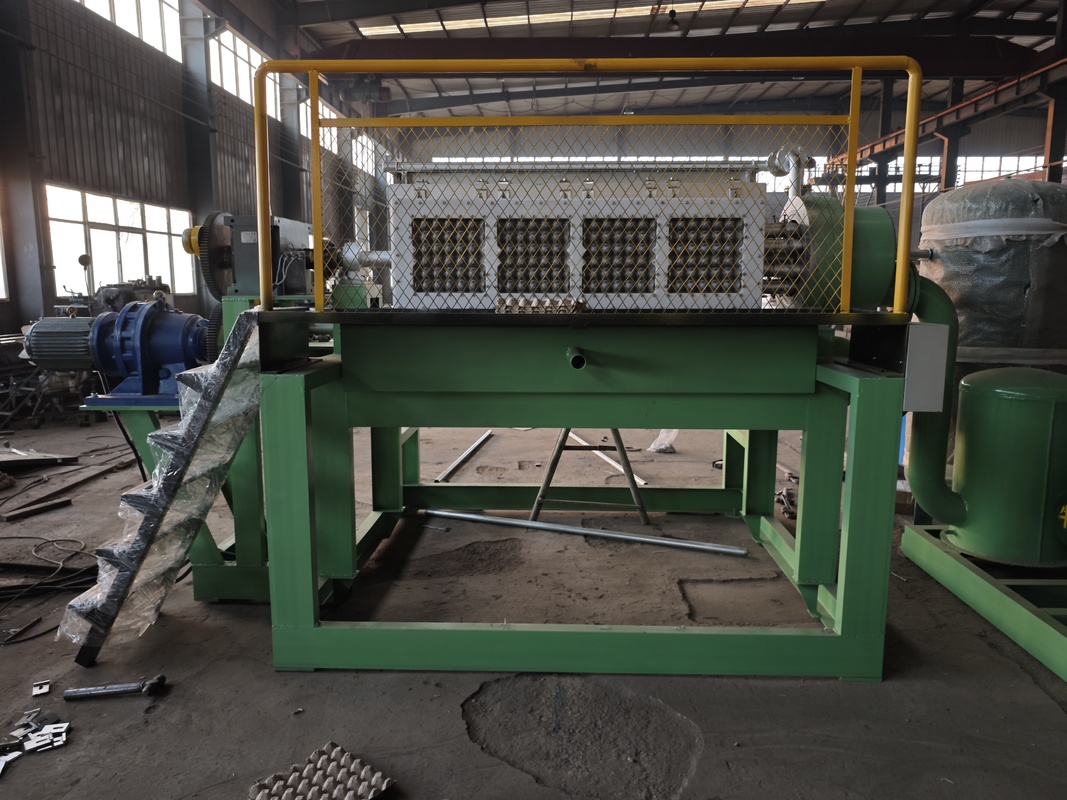

3 molds paper egg tray machine forming part 1000pcs/h capacity
Simple structure egg tray machine with cheaper investment

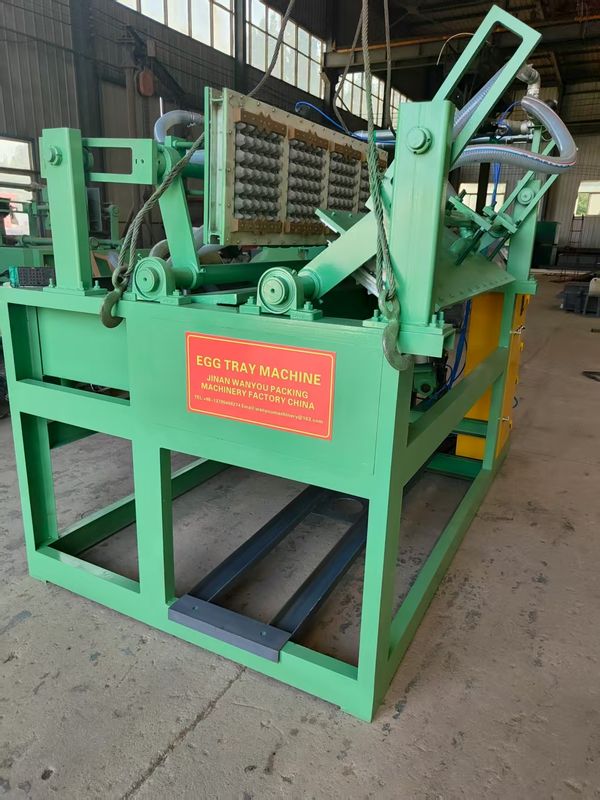

1*2 molds paper egg tray machine 700pcs/h capacity forming part
3. Dryer system for egg tray machine( Optional for customer)

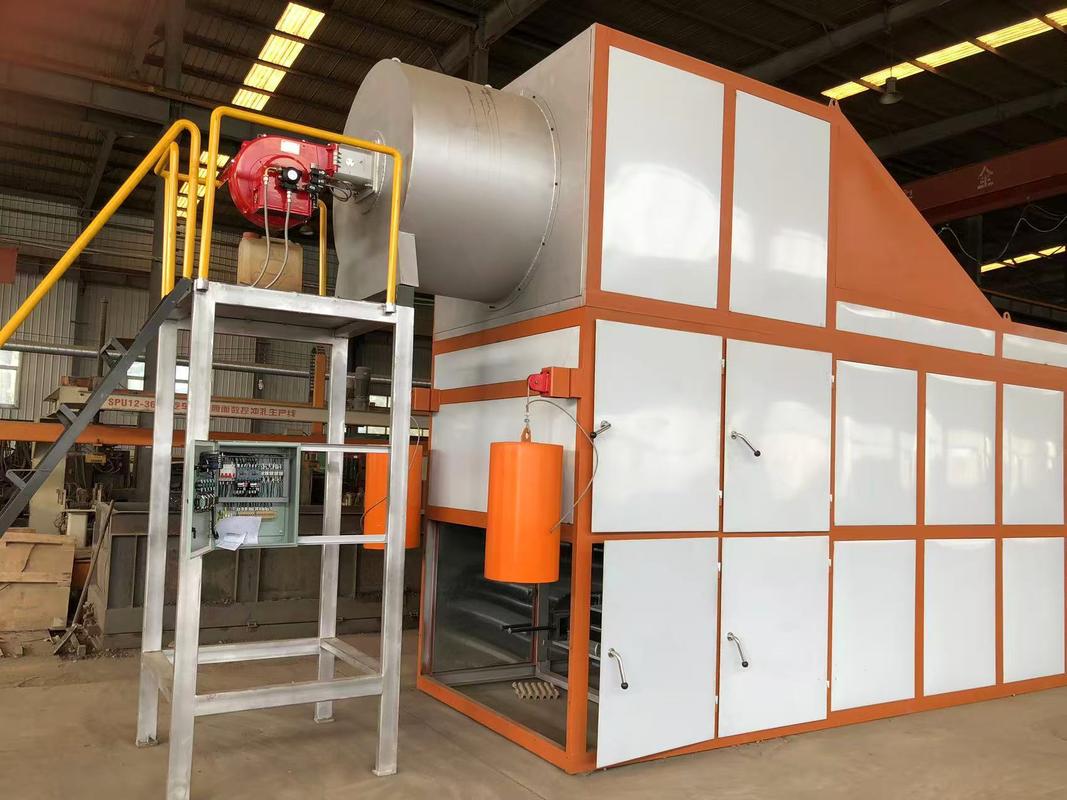

Metalic dryer model (4 layers, 6 layers, customized as per customer's needs) for egg tray machine
Heat source (fuel) for egg tray machine dryer: natural gas, diesel, liquefied petroleum gas and other combustion liquids and gases.The transmission mode adopts industrial transmission chain to drive the net plate transmission, which runs in the drying line.
Various capacity egg tray machine / egg tray production line we can make
|
Egg tray mould quantity
|
1pcs
|
2pcs
|
3pcs
|
4pcs
|
|
Raw material
|
Waste paper
|
Waste paper
|
Waste paper
|
Waste paper
|
|
Output for egg tray
|
350pcs/hour
|
700pcs/hour
|
1000pcs/hour
|
1300pcs/hour
|
|
Net weight per piece (gram)
|
70g-75g
|
70g-75g
|
70g-75g
|
70g-75g
|
|
The volume of waste paper consumed
|
0.025ton / hour
|
0.06ton / hour
|
0.1ton / hour
|
0.13ton / hour
|
|
The volume of water consumed
|
0.05ton / hour
|
|
0.15ton / hour
|
0.2ton / hour
|
|
Operators number
|
2-3workers
|
3-4workers
|
4-6workers
|
4-6workers
|
|
Area of workshop
|
More than 200M²
|
More than 240M²
|
More than 240M²
|
More than 240M²
|
|
Capacity of power
|
25KW
|
40KW
|
50KW
|
60KW
|
1000pcs/h capacity 3 molds egg tray machine technical data
|
Egg Tray Mold Quantity
|
3pcs
|
|
Raw material
|
Waste paper
|
|
Egg tray Capacity
|
1000pcs/hour
|
|
Net weight per piece (gram)
|
70g-75g
|
|
Waste paper consumption
|
75kg / hour
|
|
Water Consumption
|
0.15ton / hour
|
|
Natural Gas Consumption of Dryer
|
35cbm/h
|
|
Worker requirement
|
4-6workers
|
|
Machine Length
|
7m-25m
|
|
Machine weight
|
8-20tons
|
|
Power Requirement
|
Without dryer
|
40KW
|
|
With dryer
|
60KW
|
|
Area of workshop
|
Without dryer
|
More than 120 M²
|
|
With dryer, dryer-16m
|
More than300M²
|
|
Container Requirement
|
Without dryer
|
40ft*1
|
|
With dryer
|
40ft*3
|
|
Remarks:
1. The egg tray Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g).
2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.
|
End product of paper egg tray machine
Payment Terms
|
Delivery Time: 40 working days after getting payment
Payment Terms: 40% T/T prepayment in advance.
60% before delivery by T/T.
|
|
Warranty time
|
1year after the Egg tray machine received.
|
|
Terms of delivery
|
EXW Jinan, China
|
|
Time of payment
|
When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
|
