WANYOU 4*4 Molds Rotary Egg Tray Production Line Egg Tray/Carton Machine 2500-3000 pcs/h Recycled Paper Pulp Molding for Serbian Poultry Farm

WANYOU 4*4 Molds Rotary Egg Tray Production Line Egg Tray/Carton Machine 2500-3000 pcs/h Recycled Paper Pulp Molding for Serbian Poultry Farm

4x4 molds rotary egg tray machine

egg tray production line 3000 pcs/h

recycled paper pulp molding machine

Lugar de origen:

Jinan, Shandong, China

Nombre de la marca:

Wanyou

Número de modelo:

WY-5

Contacta con nosotros
Solicitar un presupuesto
Detalles del producto
Capacidad de producción:
2500-3000 piezas por hora
Sistema de control:
PLC Automático con Panel de Pantalla Táctil
Método de formación:
Conformado continuo de tambor rotatorio de adsorción al vacío
Método de desmoldeo:
Desmoldeo neumático automático
potencia total:
50kW
Materia prima:
Papel usado, cartón reciclado, periódico, restos de papel Kraft
Consumo de papel:
150-190 kg/h
Configuración del molde:
Molde rotativo 4x4 con inserciones reemplazables
Productos terminados:
Bandejas para huevos, Cartones para huevos, Bandejas para frutas, Portavasos para café, Bandejas de
Velocidad de funcionamiento:
13-20 ciclos de formación por minuto
Funcionamiento continuo:
Funcionamiento ininterrumpido las 24 horas.
Industrias de aplicación:
Granja, Embalaje, Alimentos, Industrial
Resaltar:

4x4 molds rotary egg tray machine

,

egg tray production line 3000 pcs/h

,

recycled paper pulp molding machine

Términos de Pago y Envío
Cantidad de orden mínima
1 juego
Precio
USD 18,800 / Set
Detalles de empaquetado
En contenedor apto para exportación con envoltorio a prueba de humedad y fijación con estructura de
Tiempo de entrega
65 días hábiles después del pago del depósito
Condiciones de pago
T/T, L/C, Western Union, MoneyGram
Capacidad de la fuente
10 juegos por mes
Descripción del Producto

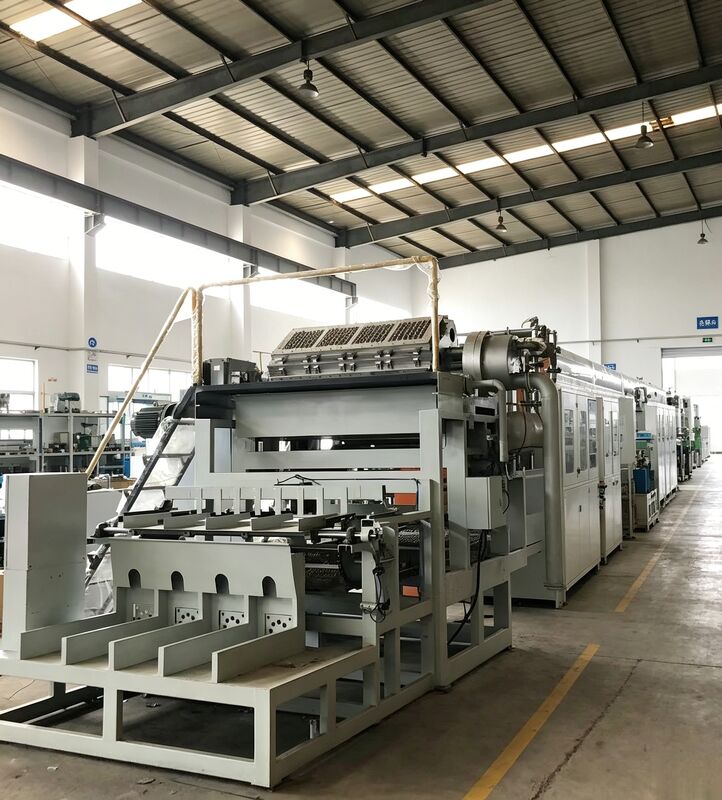

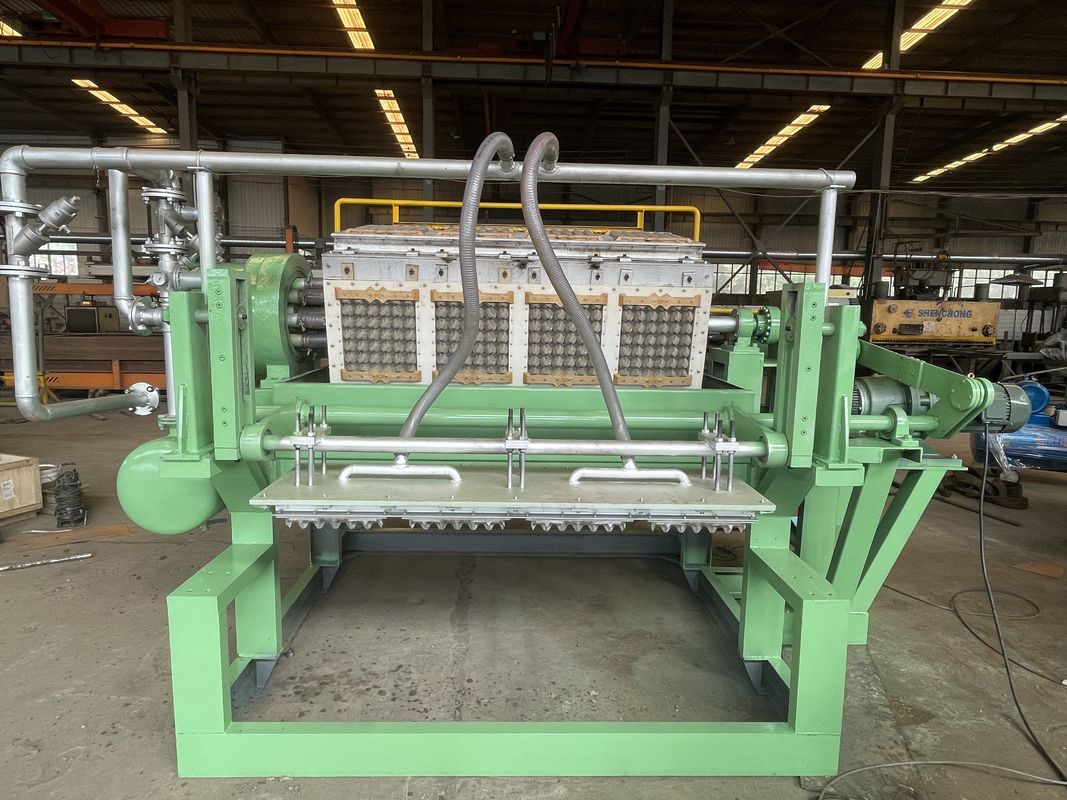

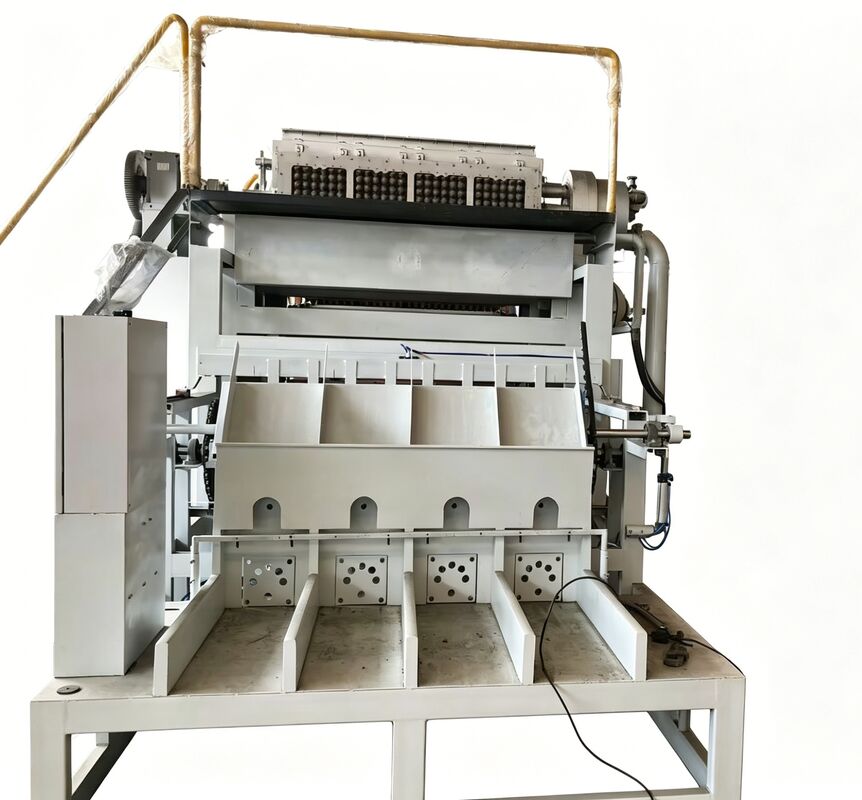

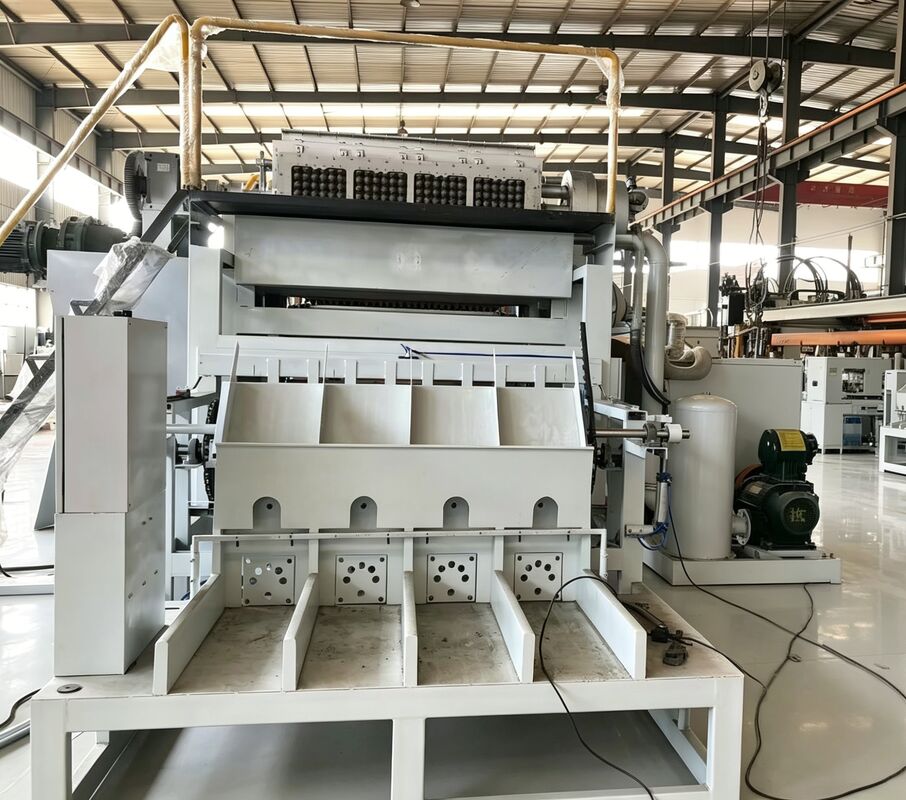

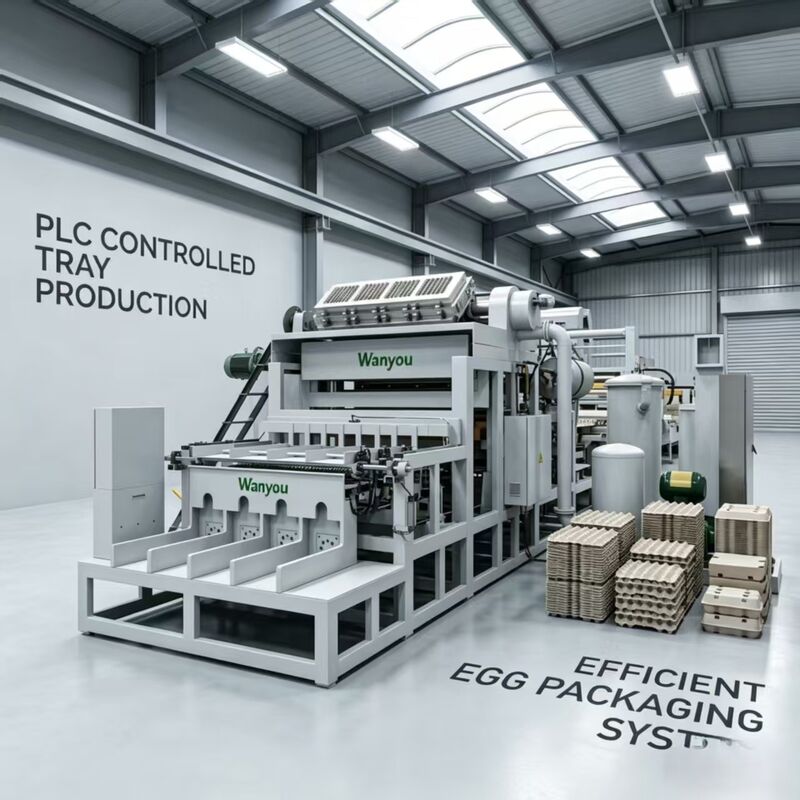

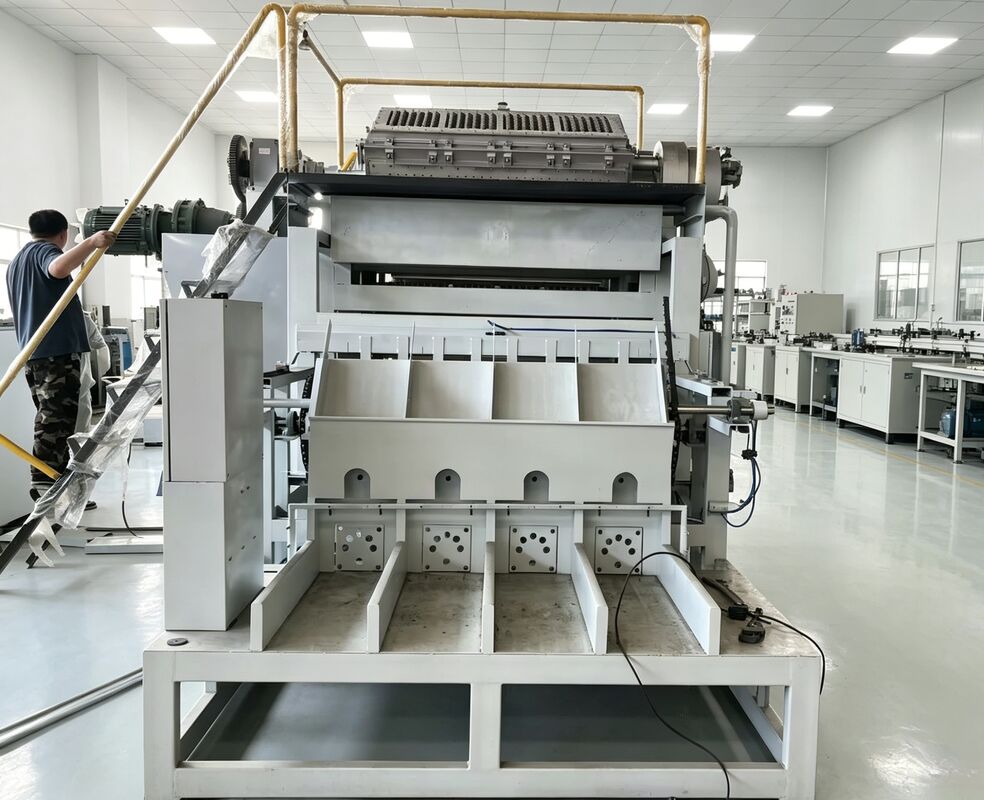

WANYOU 4*4 Molds Rotary Egg Tray Production Line Egg Tray/Carton Machine 2500-3000 pcs/h Recycled Paper Pulp Molding for Serbian Poultry Farm

The WANYOU WY-5 represents the next generation of automatic pulp molding technology, specifically configured for Serbian businesses seeking reliable and cost-effective egg tray production.

As an ideal equipment choice for paper tray packaging manufacturers, this egg tray machine combines robust engineering with user-friendly PLC automation to deliver consistent output.

WANYOU 4*4 Molds Rotary Egg Tray Production Line Egg Tray/Carton Machine 2500-3000 pcs/h Recycled Paper Pulp Molding for Serbian Poultry Farm 0

WANYOU 4*4 Molds Rotary Egg Tray Production Line Egg Tray/Carton Machine 2500-3000 pcs/h Recycled Paper Pulp Molding for Serbian Poultry Farm 1

WANYOU 4*4 Molds Rotary Egg Tray Production Line Egg Tray/Carton Machine 2500-3000 pcs/h Recycled Paper Pulp Molding for Serbian Poultry Farm 2

WANYOU 4*4 Molds Rotary Egg Tray Production Line Egg Tray/Carton Machine 2500-3000 pcs/h Recycled Paper Pulp Molding for Serbian Poultry Farm 3

Why Serbian Producers Choose the WANYOU WY-5

In today's competitive packaging market, Serbian poultry farms and packaging workshops need equipment that balances affordability with industrial-grade reliability.

The WY-P5 addresses this directly: it transforms locally available waste paper and recycled cartons into high-quality biodegradable egg trays at 2500-3000 pieces per hour while keeping energy consumption to a manageable 50KW and requiring only 5-6 workers for full operation.

Technical Specifications

Parameter Specification
Model WANYOU WY-5
Production Capacity 2500-3000 pieces per hour
Control System PLC automatic control with touch screen interface
Forming Method Rotary drum vacuum adsorption continuous forming
Demolding Automatic pneumatic demolding system
Total Power 50KW
Machine Weight 4,600 kg without dryer
Raw Material Waste paper, recycled carton, newspaper, kraft paper scraps
Paper Consumption 150-190 kg/hr
Labor Required 5-6 workers

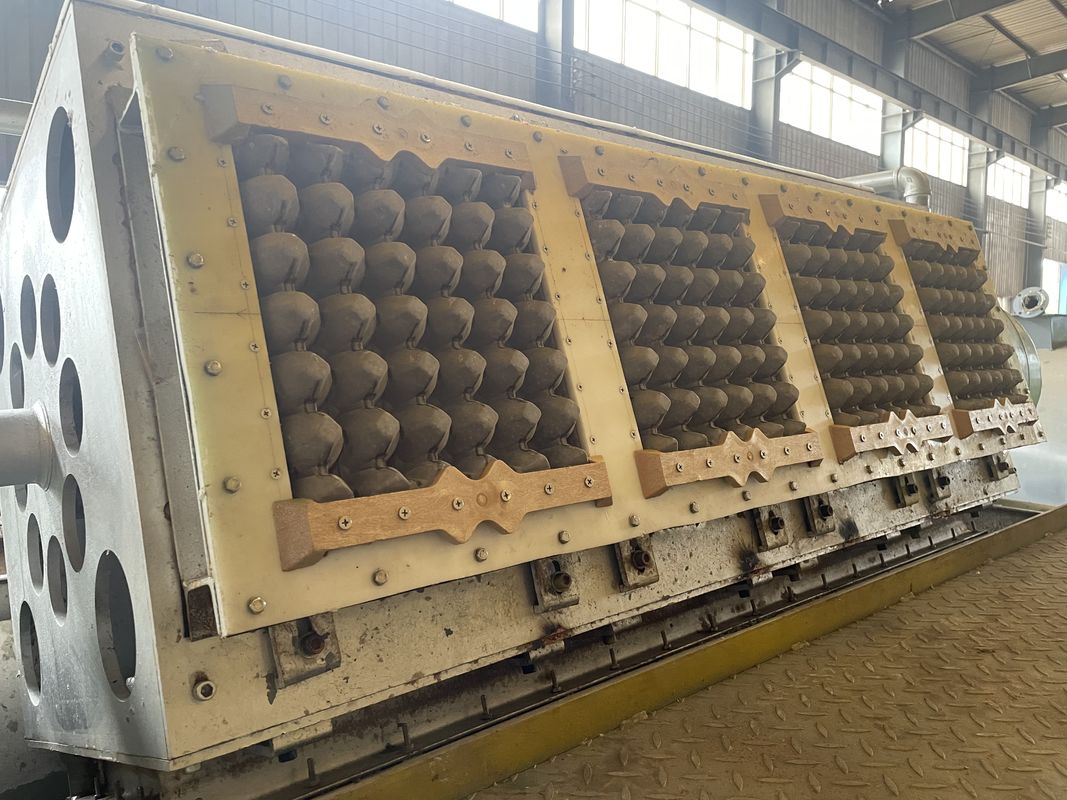

Mold Configuration 4x4 rotary mold with replaceable inserts
Drying Options Brick conveyor belt dryer, metallic dryer, or sun drying
Operating Speed 18-25 forming cycles per minute
Continuous Operation Supports 24-hour uninterrupted production

Key Advantages for the Serbian Market

  • Low-Cost Raw Materials: The machine processes waste paper, old newspapers, and discarded cartons — materials abundantly available at minimal cost in Serbia. This creates a circular economy advantage that sets Serbian producers apart from competitors relying on virgin materials or imported packaging.
  • Rapid Return on Investment: Producing 2500-3000 egg trays per hour from nearly free raw materials generates excellent margins. Serbian businesses can typically recover their equipment investment within 12-18 months of full-capacity operation.
  • Multi-Purpose Production: Interchangeable molds expand production capabilities beyond standard 30-cell egg trays. The same machine can produce egg cartons with 6, 12, or 18 cells, fruit trays for apples and pears, coffee cup holders, shoe trays, and custom industrial packaging — maximizing revenue diversification for Serbian entrepreneurs.
  • Eco-Friendly Compliance: All finished products are 100% biodegradable and compostable, meeting both local Serbian environmental regulations and international export standards. This is particularly valuable for Serbian businesses targeting EU and North American markets with sustainable packaging requirements.
  • Low Technical Barrier: The intuitive PLC touch screen control panel requires no specialized engineering background. Pulp mixing, vacuum forming, automatic demolding, and stacking are all managed automatically — Serbian operators can master the system with minimal training.

Flexible Payment and Delivery Terms

Condition Details
Price (FOB Qingdao) USD 18,800 per set
Minimum Order 1 set
Payment Terms T/T 40% deposit plus 60% balance before delivery
Delivery Time Approximately 65 working days after deposit received
Supply Capacity 10 sets per month
Warranty 12 months full machine warranty with remote technical support
Packaging Export-grade containerized shipping with moisture protection

About Jinan Wanyou Packaging Machinery Factory

Established in 2003, Wanyou has dedicated over two decades to perfecting paper pulp molding technology.

Based in Jinan, Shandong, China, the factory employs 50-60 skilled technicians and exports 70-80 percent of its production to over 30 countries worldwide.

Our philosophy — Quality First, Customer First, Turn Your Waste Into Money — drives every machine we build.


Serbian businesses interested in the WANYOU WY-P5 egg tray forming machine are welcome to contact Cindy at +86 15665703348 on WhatsApp or WeChat for detailed specifications, factory videos, client references, and a customized quotation for your production requirements.
